Classic Instruments - CH78OE
G Body Instrument Cluster OE Style without Gear Indicator
Classic Instruments is pleased to release an all-new 1978-'88 Chevy G-Body direct-fit package. It is an all-electric cluster featuring a speedometer, tachometer, clock, and fuel, oil, temp, and volt gauges in an OE style, available either with or without overdrive. Hybrid LED Lighting offers the feel of the original perimeter lighting and the visual benefits of back-lighting: even illumination and clear nighttime readability. Turn signals and high beam indicators are in the original locations and the kit includes new check engine and high beam sockets with LED bulbs. Additional indicator bulbs are available for purchase. The kit also includes a wiring harness, push-button speedometer calibration for ease of setup, a new acrylic lens, and built-in ECM signal filter switch. Save space with Classic Instruments' Zeus Speedometer Technology built-in, meaning the cluster requires no external control boxes and works directly with ECM or VSS signals. The fuel gauge is programmable for many ohm ranges with a selector switch on the back of the cluster, meaning the fuel gauge will work with the stock sending unit, any other factory sending units, or any Classic Instruments fuel sending unit. All other necessary sending units are included in a Classic Instruments GM sending unit kit. Install using customers' existing diffuser.
- All-electric cluster for ease of programming and installation
- OE Style to mimic original gauge cluster look
- Hybrid lighting to match the original styling and perimeter lighting and improve visibility with backlighting
- Includes new check engine & high beam sockets with LED bulbs to replace original and provide power from the gauge circuit board
- Includes wiring harness & push-button calibration for programming and ease of installation
- Built-in ECM signal filter switch to remove signal noise for smoother speedometer operation
- Built-in Zeus Speedometer Technology, no external control boxes needed and will work with any available speed signals
- Includes GM sending unit kit – complete, no separately purchased parts
- Installs with existing diffuser for original look
Brand: Classic Instruments
Category: Body
Emission Code: 5
part type: Gauge Set
Product Type: Gauge Set
Sub Category: Instrument Panel
[{"BaseVehicleId":3243,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3243,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3243,"SubModelId":490,"EngineBaseId":104},{"BaseVehicleId":3243,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3243,"SubModelId":20,"EngineBaseId":104},{"BaseVehicleId":3243,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3243,"SubModelId":490,"EngineBaseId":63},{"BaseVehicleId":3243,"SubModelId":490,"EngineBaseId":363},{"BaseVehicleId":3243,"SubModelId":492,"EngineBaseId":363},{"BaseVehicleId":3243,"SubModelId":490,"EngineBaseId":103},{"BaseVehicleId":3243,"SubModelId":492,"EngineBaseId":104},{"BaseVehicleId":3244,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3244,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3244,"SubModelId":492,"EngineBaseId":103},{"BaseVehicleId":3244,"SubModelId":490,"EngineBaseId":62},{"BaseVehicleId":3244,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3244,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3244,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3244,"SubModelId":490,"EngineBaseId":63},{"BaseVehicleId":3244,"SubModelId":490,"EngineBaseId":363},{"BaseVehicleId":3244,"SubModelId":492,"EngineBaseId":363},{"BaseVehicleId":3244,"SubModelId":492,"EngineBaseId":62},{"BaseVehicleId":3244,"SubModelId":490,"EngineBaseId":103},{"BaseVehicleId":3245,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3245,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3245,"SubModelId":492,"EngineBaseId":103},{"BaseVehicleId":3245,"SubModelId":490,"EngineBaseId":62},{"BaseVehicleId":3245,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3245,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3245,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3245,"SubModelId":490,"EngineBaseId":63},{"BaseVehicleId":3245,"SubModelId":490,"EngineBaseId":363},{"BaseVehicleId":3245,"SubModelId":492,"EngineBaseId":363},{"BaseVehicleId":3245,"SubModelId":492,"EngineBaseId":62},{"BaseVehicleId":3245,"SubModelId":490,"EngineBaseId":103},{"BaseVehicleId":3246,"SubModelId":490,"EngineBaseId":397},{"BaseVehicleId":3246,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3246,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3246,"SubModelId":490,"EngineBaseId":63},{"BaseVehicleId":3246,"SubModelId":492,"EngineBaseId":397},{"BaseVehicleId":3246,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3247,"SubModelId":490,"EngineBaseId":397},{"BaseVehicleId":3247,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3247,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3247,"SubModelId":490,"EngineBaseId":63},{"BaseVehicleId":3247,"SubModelId":492,"EngineBaseId":397},{"BaseVehicleId":3247,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3248,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3248,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3248,"SubModelId":492,"EngineBaseId":397},{"BaseVehicleId":3248,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3531,"SubModelId":274,"EngineBaseId":363},{"BaseVehicleId":3531,"SubModelId":274,"EngineBaseId":104},{"BaseVehicleId":3531,"SubModelId":274,"EngineBaseId":62},{"BaseVehicleId":3531,"SubModelId":274,"EngineBaseId":103},{"BaseVehicleId":3531,"SubModelId":274,"EngineBaseId":370},{"BaseVehicleId":3531,"SubModelId":274,"EngineBaseId":63},{"BaseVehicleId":3530,"SubModelId":274,"EngineBaseId":363},{"BaseVehicleId":3530,"SubModelId":274,"EngineBaseId":62},{"BaseVehicleId":3530,"SubModelId":274,"EngineBaseId":103},{"BaseVehicleId":3530,"SubModelId":274,"EngineBaseId":370},{"BaseVehicleId":3530,"SubModelId":274,"EngineBaseId":63},{"BaseVehicleId":3547,"SubModelId":141,"EngineBaseId":363},{"BaseVehicleId":3547,"SubModelId":141,"EngineBaseId":428},{"BaseVehicleId":3547,"SubModelId":270,"EngineBaseId":363},{"BaseVehicleId":3547,"SubModelId":270,"EngineBaseId":428},{"BaseVehicleId":3547,"SubModelId":141,"EngineBaseId":63},{"BaseVehicleId":3547,"SubModelId":270,"EngineBaseId":63},{"BaseVehicleId":3536,"SubModelId":20,"EngineBaseId":104},{"BaseVehicleId":3536,"SubModelId":20,"EngineBaseId":428},{"BaseVehicleId":3536,"SubModelId":270,"EngineBaseId":104},{"BaseVehicleId":3536,"SubModelId":20,"EngineBaseId":359},{"BaseVehicleId":3536,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3536,"SubModelId":270,"EngineBaseId":359},{"BaseVehicleId":3536,"SubModelId":270,"EngineBaseId":363},{"BaseVehicleId":3536,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3536,"SubModelId":270,"EngineBaseId":428},{"BaseVehicleId":3536,"SubModelId":270,"EngineBaseId":63},{"BaseVehicleId":3548,"SubModelId":141,"EngineBaseId":363},{"BaseVehicleId":3548,"SubModelId":270,"EngineBaseId":104},{"BaseVehicleId":3548,"SubModelId":270,"EngineBaseId":363},{"BaseVehicleId":3548,"SubModelId":141,"EngineBaseId":103},{"BaseVehicleId":3548,"SubModelId":141,"EngineBaseId":63},{"BaseVehicleId":3548,"SubModelId":270,"EngineBaseId":63},{"BaseVehicleId":3548,"SubModelId":270,"EngineBaseId":103},{"BaseVehicleId":3548,"SubModelId":141,"EngineBaseId":104},{"BaseVehicleId":3537,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3537,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3537,"SubModelId":20,"EngineBaseId":104},{"BaseVehicleId":3537,"SubModelId":270,"EngineBaseId":104},{"BaseVehicleId":3537,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3537,"SubModelId":270,"EngineBaseId":363},{"BaseVehicleId":3537,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3537,"SubModelId":270,"EngineBaseId":63},{"BaseVehicleId":3537,"SubModelId":270,"EngineBaseId":103},{"BaseVehicleId":3538,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3538,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3538,"SubModelId":20,"EngineBaseId":104},{"BaseVehicleId":3538,"SubModelId":20,"EngineBaseId":370},{"BaseVehicleId":3538,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3538,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3539,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3539,"SubModelId":428,"EngineBaseId":363},{"BaseVehicleId":3539,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3539,"SubModelId":428,"EngineBaseId":62},{"BaseVehicleId":3539,"SubModelId":20,"EngineBaseId":370},{"BaseVehicleId":3539,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3539,"SubModelId":428,"EngineBaseId":370},{"BaseVehicleId":3539,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3539,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3539,"SubModelId":428,"EngineBaseId":63},{"BaseVehicleId":3539,"SubModelId":428,"EngineBaseId":103},{"BaseVehicleId":3539,"SubModelId":492,"EngineBaseId":62},{"BaseVehicleId":3540,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3540,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3540,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3540,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3540,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3541,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3541,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3541,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3541,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3542,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3542,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3542,"SubModelId":20,"EngineBaseId":1718},{"BaseVehicleId":3542,"SubModelId":96,"EngineBaseId":397},{"BaseVehicleId":3542,"SubModelId":96,"EngineBaseId":63},{"BaseVehicleId":3542,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3543,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3543,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3543,"SubModelId":20,"EngineBaseId":1718},{"BaseVehicleId":3543,"SubModelId":96,"EngineBaseId":397},{"BaseVehicleId":3543,"SubModelId":96,"EngineBaseId":63},{"BaseVehicleId":3543,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3544,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3544,"SubModelId":492,"EngineBaseId":63},{"BaseVehicleId":3544,"SubModelId":96,"EngineBaseId":397},{"BaseVehicleId":3544,"SubModelId":96,"EngineBaseId":63},{"BaseVehicleId":3544,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3888,"SubModelId":557,"EngineBaseId":63},{"BaseVehicleId":3888,"SubModelId":558,"EngineBaseId":363},{"BaseVehicleId":3888,"SubModelId":20,"EngineBaseId":104},{"BaseVehicleId":3888,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3888,"SubModelId":558,"EngineBaseId":103},{"BaseVehicleId":3888,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3888,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3888,"SubModelId":557,"EngineBaseId":103},{"BaseVehicleId":3888,"SubModelId":558,"EngineBaseId":104},{"BaseVehicleId":3888,"SubModelId":557,"EngineBaseId":363},{"BaseVehicleId":3888,"SubModelId":558,"EngineBaseId":63},{"BaseVehicleId":3888,"SubModelId":557,"EngineBaseId":104},{"BaseVehicleId":3889,"SubModelId":557,"EngineBaseId":63},{"BaseVehicleId":3889,"SubModelId":558,"EngineBaseId":363},{"BaseVehicleId":3889,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3889,"SubModelId":558,"EngineBaseId":103},{"BaseVehicleId":3889,"SubModelId":558,"EngineBaseId":62},{"BaseVehicleId":3889,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3889,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3889,"SubModelId":557,"EngineBaseId":103},{"BaseVehicleId":3889,"SubModelId":557,"EngineBaseId":363},{"BaseVehicleId":3889,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3889,"SubModelId":558,"EngineBaseId":63},{"BaseVehicleId":3889,"SubModelId":557,"EngineBaseId":62},{"BaseVehicleId":3890,"SubModelId":557,"EngineBaseId":63},{"BaseVehicleId":3890,"SubModelId":558,"EngineBaseId":363},{"BaseVehicleId":3890,"SubModelId":20,"EngineBaseId":103},{"BaseVehicleId":3890,"SubModelId":558,"EngineBaseId":103},{"BaseVehicleId":3890,"SubModelId":558,"EngineBaseId":62},{"BaseVehicleId":3890,"SubModelId":20,"EngineBaseId":363},{"BaseVehicleId":3890,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3890,"SubModelId":557,"EngineBaseId":103},{"BaseVehicleId":3890,"SubModelId":557,"EngineBaseId":363},{"BaseVehicleId":3890,"SubModelId":20,"EngineBaseId":62},{"BaseVehicleId":3890,"SubModelId":558,"EngineBaseId":63},{"BaseVehicleId":3890,"SubModelId":557,"EngineBaseId":62},{"BaseVehicleId":3891,"SubModelId":558,"EngineBaseId":397},{"BaseVehicleId":3891,"SubModelId":557,"EngineBaseId":63},{"BaseVehicleId":3891,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3891,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3891,"SubModelId":558,"EngineBaseId":63},{"BaseVehicleId":3891,"SubModelId":557,"EngineBaseId":397},{"BaseVehicleId":3892,"SubModelId":558,"EngineBaseId":397},{"BaseVehicleId":3892,"SubModelId":557,"EngineBaseId":63},{"BaseVehicleId":3892,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3892,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3892,"SubModelId":558,"EngineBaseId":63},{"BaseVehicleId":3892,"SubModelId":557,"EngineBaseId":397},{"BaseVehicleId":3896,"SubModelId":558,"EngineBaseId":397},{"BaseVehicleId":3896,"SubModelId":20,"EngineBaseId":397},{"BaseVehicleId":3896,"SubModelId":20,"EngineBaseId":63},{"BaseVehicleId":3896,"SubModelId":558,"EngineBaseId":63}]
Related Products
Sold out
Classic Instruments CH78OE07 - Chevy G-Body Direct Fit Gauge Package without Overdrive Gear Indicator
Classic Instruments - CH78OE07Chevy G-Body Direct Fit Gauge Package without Overdrive Gear IndicatorChevy G-Body direct-fit package is an all-electric cluster featuring OE style without Overdrive...
$1,181.95
$1,049.95
Add to Cart
The item has been added
Classic Instruments CH78OE06 - Chevy G-Body Direct Fit Gauge Package with Overdrive Gear Indicator
Classic Instruments - CH78OE06Gauge Kit - Chevy G-Body - Analog - Fuel Level / Oil Pressure / Speedometer / Tachometer / Voltmeter / Water Temperature - Black Face - GM G-Body 1978-88 - KitChevy...
$1,181.95
$1,049.95
Add to Cart
The item has been added
Sold out
Classic Instruments FT57OE54 - OE Style with Speedometer
Classic Instruments - FT57OE541957-60 Ford TruckOE Style with SpeedometerOur 1957-60 Ford Truck direct-fit package features an option between our standard 4 5/8” speedometer or our Speedtachular;...
$1,293.95
$1,149.95
Sold out

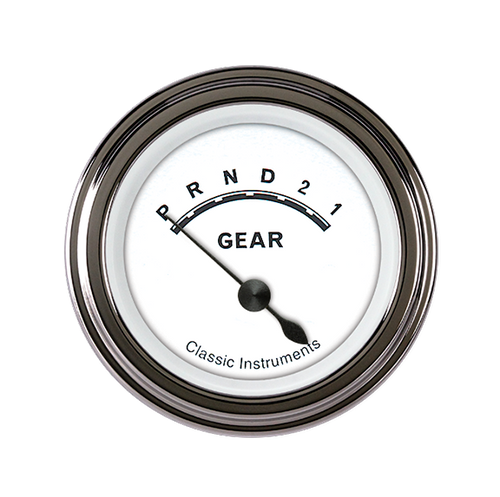

Classic Instruments CW07SLF - Classic White 2 1/8" Gear Indicator
