Centerforce KDF148174 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L

Write a Review
$1,312.99
$1,049.95
(You save $263.04 )
SKU: BDPL-KDF148174
UPC: 788442030709
Stock: 0
Vendor: Premier - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: True
StockEta: N/A
ProfitMargin: 16.200
CostOfItem: 866.21
ItemPopularity: 0
MapPrice: 1049.95
RetailPrice: 1312.99
EbayAllowed: False
WarehouseStock: 0
ShippingGroups: ["Flatrate_Motor State"]
EbayPrice: 1049.95
ShipperHq: {"shipping-groups":["Premier","FreeShipping"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 8143

Out of stock

  • screenshot-2024-06-06-013938.png
Centerforce KDF148174 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L

Centerforce KDF148174 - Dual Friction ?, High Performance Clutch and Flywheel Kit, 83.60 lbs, 146 Tooth Gear, 0 in/oz Internally Balanced, 8 Bolt Crank, 563 ft/lbs Capacity, 10.4in Dia., 10-Spline, Fits Jeep Wrangler 3.8L

$1,312.99
$1,049.95
(You save $263.04 )

Centerforce - KDF148174

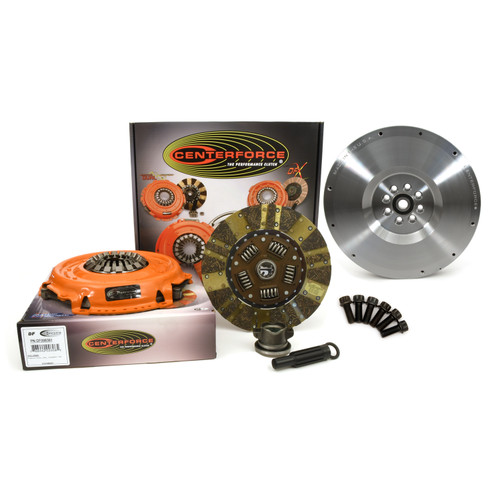

Clutch Kit - Dual Friction - Single Disc - 10.4 in Diameter - 1-1/8 in x 10 Spline - Sprung Hub - Steel Flywheel - Organic / Carbon - Jeep Wrangler JK 2007-11 - Kit

The Centerforce Dual Friction(R) Clutch Series uses patented technologies for an ultimate pressure plate and disc combination.

Experience unparalleled performance with the Centerforce Dual Friction Clutch Kit, designed to meet the demands of both street and off-road enthusiasts. This kit features a performance-matched pressure plate and disc combination, utilizing patented technologies to deliver exceptional holding capacity and durability. The high-strength cast iron pressure plate, combined with a high inertia billet steel flywheel, ensures maximum performance and reliability. The high inertia design helps the engine maintain its RPM in rough terrain, providing smoother and more consistent power delivery. The Dual Friction disc, with an organic full facing on one side and an organic segmented facing on the other, provides increased holding capacity and longevity, making it ideal for both street and mild competition applications. The Centerforce Dual Friction Clutch Kit includes all necessary assembly hardware, ensuring a straightforward installation process. With its advanced centrifugal weight system, this clutch kit offers smooth engagement and exceptional street characteristics without sacrificing pedal effort and driver control. Whether you?re navigating city streets or tackling rugged off-road trails, the Centerforce Dual Friction Clutch Kit delivers the ultimate in performance and reliability. Upgrade your vehicle today and feel the difference in power and control. Are you ready to elevate your driving experience?

  • 10.4" Diameter
  • 264.2mm Diameter
  • 1-1/8" x 10 Spline Input Shaft
  • Holds Up To 563 ft/lbs of Torque
  • Weighs 83.60 lbs
  • Sprung Hub Disc with Organic/Carbon Composite Material
  • 146 Tooth R.Gear, 8 Bolt Crank, and 0 oz Counter Balance

Clutch Bolt Type: Shouldered
Clutch Disc Diameter: 10.4
Clutch Disc Diameter: 264.2
Counterweight Assist: YES
Crankshaft Bolt Hole Quantity: 8
Disc Material: Organic/Carbon composite
Disc Type Sprung Solid: Sprung
Disc Type: Segmented face
Dowel Pin Quantity Cover To Flywheel: 3
Flywheel Counter Balance Weight: 0
Flywheel Crank Flange Register: 1.889
Input Shaft Diameter: 1-1/8
Input Spline Quantity: 10
Made In The USA: Assembled
Material: Billet Steel Flywheel / Cast Iron Pressure Plate / Segmented Organic Friction
Mounting Hardware Included: Yes
Out of Package Weight: 83.60
Pilot Bushing Included: Yes
Release Bearing Included: Yes
Ring Gear O.D.: 12.345
Tooth Quantity: 146
Torque Capacity: 563
Alignment Tool Included: Yes
