Description

Canton - 18-380

Engine Oil Pan - Marine - Rear Sump - 10 qt - 10 in Deep - Steel - Black Powder Coat - 2-Piece Seal - Big Block Chevy - Each

Canton 18-380 Oil Pan Big Block Chevy Mark 4 Deep Sump Offshore Marine Oil Pan

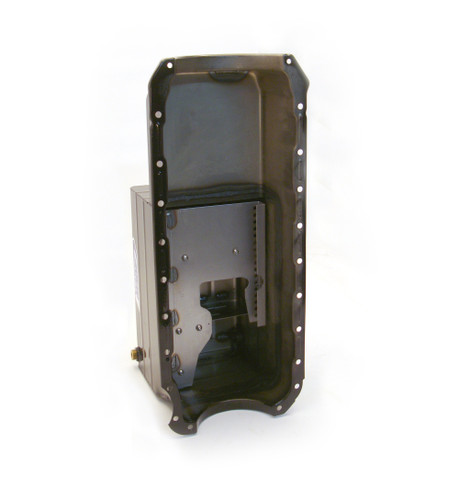

This Big Block Chevy heavy duty extra deep Marine oil pan is for standard Big Block with 2 piece rear seal and is designed for offshore racing. The 10" deep, 14" long sump holds 10 quarts of oil. This pan requires our 18-381 pickup.

  • 10 qt Pan Capacity
  • 14 ga. Steel Construction
  • Double Trap Door Baffles
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Drain Fitting
  • Provision For our Pan Mounted Dipstick
  • Powder Coating & Brass Plugs For Corrosion Protection

Baffled: Yes
Gasket or Seal Included: No
Sump Depth: 10 inches
Stoke: 4.5 inches
Recommended Accessory 4: 88-300 ? BBC Mark IV Oil Pan Gasket
Recommended Accessory 3: 20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
Recommended Accessory 1: 18-381 - Our Special Pickup Built From Extra Heavy Wall Tubing
Pickup Included: No
Material: 14 Gauge Steel
Kicked Out: No
Hardware Included: No
Finish: Black Gloss Powdercoat
Capacity: 10 Quart System Capacity
Feature 7: Powder Coating & Brass Plugs For Corrosion Protection
Feature 6: Provision For our Pan Mounted Dipstick
Feature 5: 1/2" NPT Drain Fitting
Feature 4: Removable Windage/Anti-Slosh Baffle
Feature 3: Double Trap Door Baffles
Feature 2: 14 ga. Steel Construction
Feature 1: 10 qt Pan Capacity
Drain Plug Included: Yes
Dipstick Port: Yes
Crank Scraper Included: No
Windage Tray Included: No
