Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race

Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race

Write a Review
$666.00
$555.00
(You save $111.00 )
SKU: BGTF-15-734
UPC: 887753713360
Stock: 2
Vendor: Motor State - CSR
SpecialOrder: False
CarbRejected: False
CouponIsOn: True
StockEta: N/A
ProfitMargin: 15.700
CostOfItem: 457.80
ItemPopularity: 0
MapPrice: 555.00
RetailPrice: 666.00
EbayAllowed: False
WarehouseStock: 2
ShippingGroups: ["Flatrate_Motor State"]
EbayPrice: 555
ShipperHq: {"shipping-groups":["Motor State","FreeShipping","Flatrate_Motor State"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0
Adding to cart… The item has been added
  • screenshot-2024-06-06-013938.png
Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race

Canton 15-734 - Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race

$666.00
$555.00
(You save $111.00 )
Description

Canton - 15-734

Engine Oil Pan - Street / Strip / Road Race - Rear Sump - 7 qt - 6.625 in Deep - Steel - Cadmium - Ford Coyote - Each

Canton 15-734 Oil Pan Ford 5.0 Coyote Road Race T Sump Drag Street and Road Race

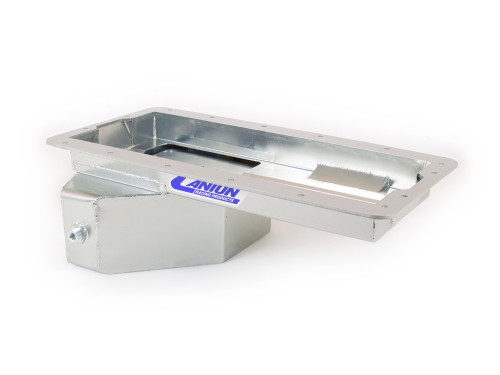

This 15-734 Ford 5.0 Coyote oil pan is designed for 96-04 and 05-12 Mustangs being used in road racing or street/strip applications. Our laser cut rail provides a strong, easy to seal surface. It's rear T sump design offers extra capacity without sacrificing ground clearance and includes a diamond shaped road race baffle assembly with four trap doors for great oil control under heavy driving conditions.

  • 9 qt System Capacity
  • Diamond Shape Road Race Baffle Assembly With Four Trap Doors
  • Crank Scraper
  • Removable Windage/Anti-Slosh Baffle
  • 1/2" NPT Temperature Bung
  • Provision For Our Pan Mounted Dipstick
  • Magnetic Drain Plug

Baffled: Yes
Finish: Silver Plating
Recommended Accessory 3: 20-854 - Flexible Universal Steel Braided Dipstick Kit - 1/4" NPT Fitting
Recommended Accessory 2: 20-850 - Universal Dipstick Kit - 1/4" NPT Fitting
Recommended Accessory 1: 22-405 - 20mm Plug For Oil Level Sender Port
Pickup Included: No
Material: 16 Gauge Steel
Kicked Out: Yes
Hardware Included: No
Gasket or Seal Included: No
Feature 7: 20 mm bung for low oil warning sender (Plug required if sender isn't used)
Capacity: 7 Quart System Capacity
Feature 6: Provison for our Pan Mounted Dipstick
Feature 5: 1/2" NPT bung for temperature sensor
Feature 4: 7 qt System Capacity
Feature 3: Magnetic Drain Plug
Feature 2: Bolt In Anti-Slosh Baffle
Feature 1: 3/16" Lasercut Rail
Drain Plug Included: Yes
Dipstick Port: No
Crank Scraper Included: No
Windage Tray Included: No
