Baer Brakes 4302135CY - Extreme Brake System Rear

Baer Brakes 4302135CY - Extreme Brake System Rear

Name: Baer Brakes 4302135CY - Extreme Brake System Rear
Brand: Baer Brakes
SKU: HKMJ-4302135CY
Price: 4444.95 USD
Availability: InStock

Write a Review

$5,000.95

$4,444.95

(You save $556.00 )

SKU: HKMJ-4302135CY

UPC: 090127941119

Stock: 20

Vendor: Holley - CSR

SpecialOrder: False

CarbRejected: False

CouponIsOn: True

StockEta: N/A

ProfitMargin: 31.100

CostOfItem: 2985.90

ItemPopularity: 0

MapPrice: 4444.95

RetailPrice: 5000.95

WarehouseStock: 20

EbayAllowed: False

ShippingGroups: ["Flatrate_Holley"]

EbayPrice: 3909.95

ShipperHq: {"shipping-groups":["Holley","FreeShipping"],"shipping-origins":[],"shipping-dimensional-rules":[]}

IsReturnable: True

EbayPriority: 0

Current Stock: 20

Quantity:

Adding to cart… The item has been added

Baer Brakes 4302135CY - Extreme Brake System Rear

$5,000.95

$4,444.95

(You save $556.00 )

Description
Warranty Information

Description

Baer Brakes - 4302135CY

Baer Brakes 14" Extreme Rear Brake Kit, Comp Yellow, SDZ

Fits 2005-14 GM 1500 Trucks w/OE Rear Drum Brakes (Drum to Disc Conversion)

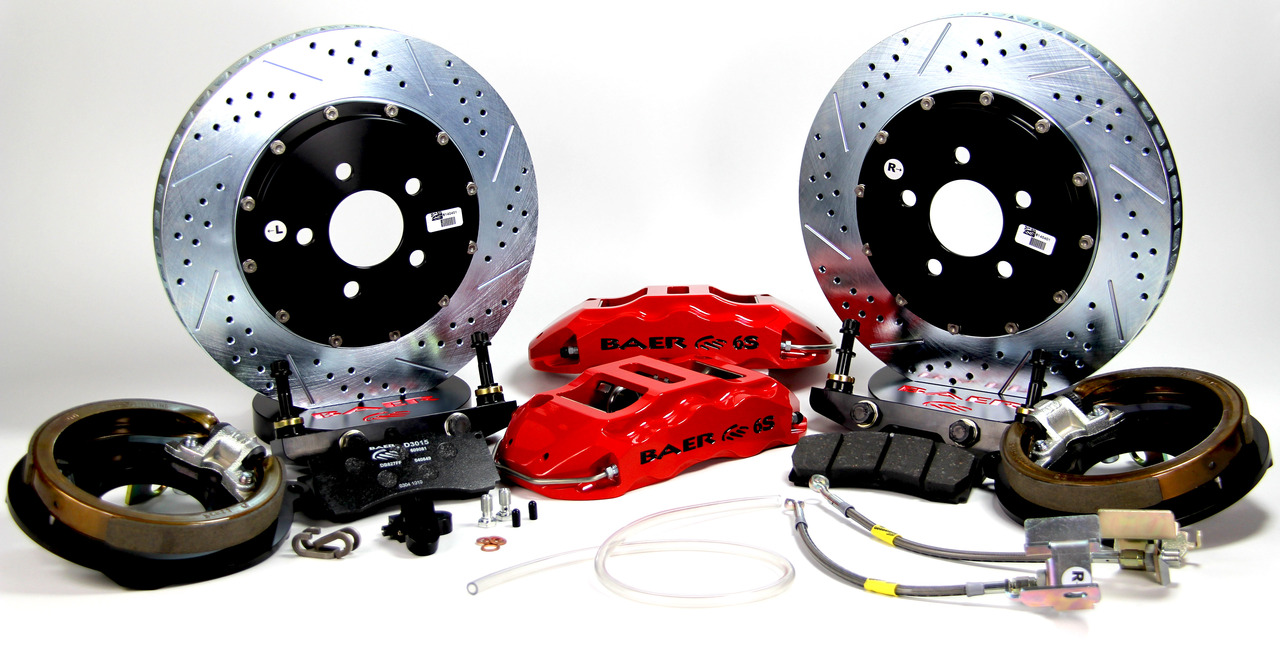

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 1 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Baer’s unique backing plate not only acts as a caliper mount, but also houses a modern 1-piece park brake shoe assembly. Stainless braided hoses and hardware are also included. The 14” Extreme fits most 18” or larger wheels.

1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
CNC Machined from US Sourced 2618 Aluminum Forging
Powder Coated Finish
Stainless Steel Pistons, Abutments and Noise Suppression Clips
Staggered Pistons to Minimize Uneven Pad Wear
Dual Seals, Dust/Weather & Pressure
1-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Applications: GM C/K1500 Trucks 99-19

Axle: Rear

Brand: Baer Brakes

Caliper: 6S

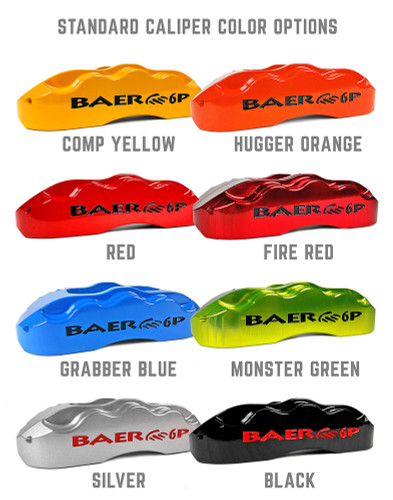

Caliper Color: Comp Yellow

Category: Brake

Disc Brake Caliper (Rear) Piston Quantity: 6

Disc Brake Caliper (Rear) Type: Floating

Disc Brake Pad FMSI Number: D1247

Disc Brake Rotor (Rear) Construction: Vented

Disc Brake Rotor (Rear) Outside Diameter: 14.000

Emission Code: 6

Export Description: Brake Components

Fitment Notes: w/OE Rear Drum Brakes (Drum to Disc Conversion)

Grade Type: Performance

Hose Material: Stainless Steel

Includes Park Brake: Yes

Includes Park Brake Cables: No, See Note

Lug Count: 6 Lug

Min Wheel Dia (verify using template): 18

part type: Disc Brake Upgrade Kit

Product Line: 14 Inch Extreme

Product Type: 14 Inch Extreme Rear Brake Kit

Rotor Thickness: 1.150

Rotor Type: 1-Piece

Sub Category: Service Kits

Surface Type: Slotted, Drilled & Zinc Plated

System Notes: Designed to fit 2005-14 GM 1500 Trucks w/OE drum brakes. Cust must purchase OE replacement cables from GM. Cab style, bed length, 2/4WD will need to be specified. We recommended cables from the 2004 model year.

Template: N228P

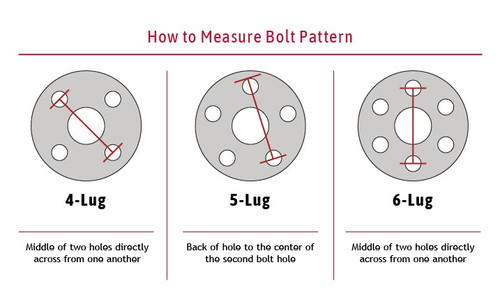

Wheel Lug/Bolt Pattern: 6x5.50
