Baer Brakes 4301588MG - Extreme+ Brake System Front

$4,550.95

$4,044.95

(You save $506.00 )

Description
Warranty Information

Description

Baer Brakes - 4301588MG

Baer Brakes 14" Extreme+ Front Brake Kit, Monster Green, SDZ

Fits 1973-87 Chevy/GMC 2WD 1/2 Ton Trucks w/DSE Forged Aluminum 2.5" Drop Modular Spindles

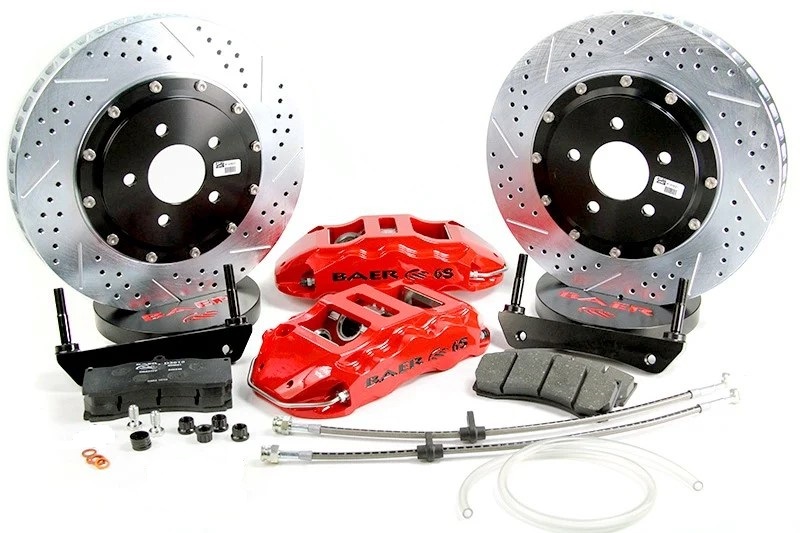

The Extreme+ system comes with the 1-piece Monoblock 6-piston, 6S caliper mounted to a 14", 2 piece slot, drill, zinc plated rotor. The 6S caliper is fully machined in Phoenix, AZ from a US sourced 2618 Aluminum forging, includes stainless steel pistons and abutments, D.O.T. compliant dust and weather seals and uses the popular D1247 pad type. Rotors are pre-assembled with NAS high grade stainless hardware. All mounting brackets, stainless braided hoses and hardware are also included. The 14” Extreme+ fits most 18” or larger wheels.

1-Piece Monoblock, 6-Piston, 6S Caliper Manufactured in Phoenix, AZ
CNC Machined from US Sourced 2618 Aluminum Forging
Powder Coated Finish
Stainless Steel Pistons, Abutments and Noise Suppression Clips
Staggered Pistons to Minimize Uneven Pad Wear
Dual Seals, Dust/Weather & Pressure
2-Piece Slot, Drilled, Zinc-Plate Rotor w/Billet Aluminum Hat

Applications: GM C10 Trucks 60-87

Axle: Front

Brand: Baer Brakes

Caliper: 6S

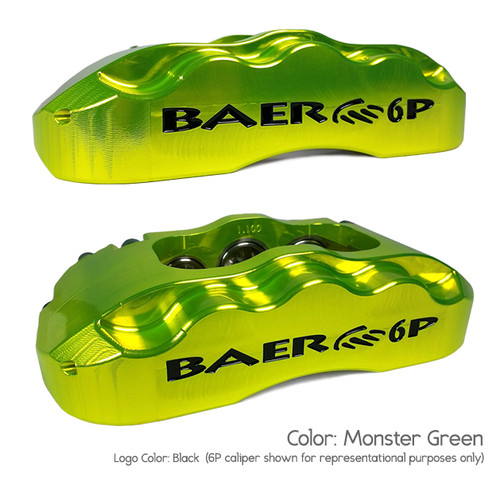

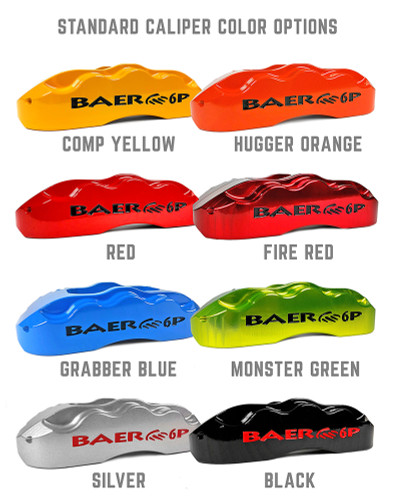

Caliper Color: Monster Green

Category: Brake

Disc Brake Caliper (Front) Piston Quantity: 6

Disc Brake Caliper (Front) Type: Fixed

Disc Brake Pad FMSI Number: D1247

Disc Brake Rotor (Front) Construction: Vented

Disc Brake Rotor (Front) Outside Diameter: 14.000

Emission Code: 6

Export Description: Brake Components

Fitment Notes: w/DSE Forged Aluminum Modular Spindles

Grade Type: Performance

Hose Material: Stainless Steel

Lug Count: 5 Lug

Min Wheel Dia (verify using template): 18

part type: Disc Brake Upgrade Kit

Product Line: 14 Inch Extreme+

Product Type: 14 Inch Extreme+ Front Brake Kit

Rotor Thickness: 1.250

Rotor Type: 2-Piece

Spindle Type: DSE Forged Alum Modular 2.5" Drop Spindles

Spindles Included: No

Sub Category: Service Kits

Surface Type: Slotted, Drilled & Zinc Plated

System Notes: Fits DSE 2.5" drop, forged aluminum modular spindles p/n 032090DS. Bolt on hub packs not included.

Template: N072P

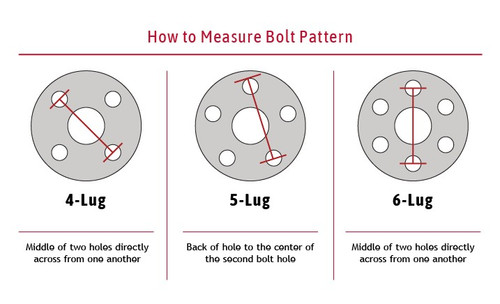

Wheel Lug/Bolt Pattern: 5x4.75/5x5.00
