Baer Brakes 4301512FR - Track4 Brake System Front

Baer Brakes 4301512FR - Track4 Brake System Front

Name: Baer Brakes 4301512FR - Track4 Brake System Front
Brand: Baer Brakes
SKU: HKMJ-4301512FR
Price: 2444.95 USD
Availability: InStock

Write a Review

$2,750.95

$2,444.95

(You save $306.00 )

SKU: HKMJ-4301512FR

UPC: 090127876992

Stock: 20

Vendor: Holley - CSR

SpecialOrder: False

CarbRejected: False

CouponIsOn: True

StockEta: N/A

ProfitMargin: 29.700

CostOfItem: 1646.90

ItemPopularity: 0

MapPrice: 2444.95

RetailPrice: 2750.95

WarehouseStock: 20

EbayAllowed: False

ShippingGroups: ["Flatrate_Holley"]

EbayPrice: 2109.95

ShipperHq: {"shipping-groups":["Holley","FreeShipping"],"shipping-origins":[],"shipping-dimensional-rules":[]}

IsReturnable: True

EbayPriority: 0

Current Stock: 20

Quantity:

Adding to cart… The item has been added

Baer Brakes 4301512FR - Track4 Brake System Front

$2,750.95

$2,444.95

(You save $306.00 )

Description
Warranty Information

Description

Baer Brakes - 4301512FR

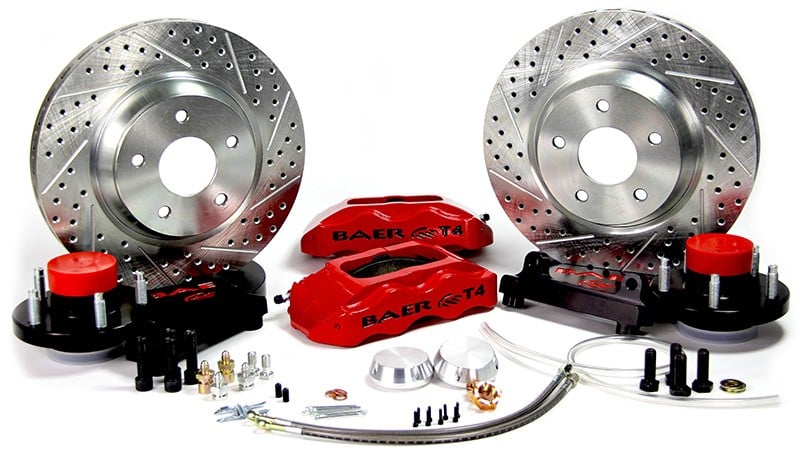

Baer Brakes 13" Track4 Front Brake Kit, Fire Red, SDZ, Std. Studs

Fits 1960-87 Chevy/GMC 2WD 1/2 Ton Trucks w/CPP Nodular Iron 2.5" Drop Spindle (5 Lug, 5x5"BC)

This system features the 4-piston, T4 caliper mounted to a 13", 1 piece slot, drill, zinc plated rotor. The T4 caliper has D.O.T compliant dust and weather seals and uses the popular D0749 pad type. Billet aluminum hubs come assembled with premium bearings packed with Redline synthetic grease and billet dust caps. All mounting brackets, stainless braided hoses and hardware are also included. The 13" Track4 is designed to fit most 17" or larger wheels.

2-Piece, 4-Piston, T4 Caliper Manufactured in Phoenix, AZ
CNC Machined from US Sourced Forged or Billet Aluminum
Powder Coated Finish
Stainless Steel Pistons, Abutments and Noise Suppression Clips
Staggered Pistons to Minimize Uneven Pad Wear
Dual Seals, Dust/Weather & Pressure
1-Piece Slot, Drilled, Zinc-Plate Rotor

Applications: GM C10 Trucks 60-87

Axle: Front

Brand: Baer Brakes

Caliper: T4

Caliper Color: Fire Red

Category: Brake

Disc Brake Caliper (Front) Piston Quantity: 4

Disc Brake Caliper (Front) Type: Fixed

Disc Brake Pad FMSI Number: D0749

Disc Brake Rotor (Front) Construction: Vented

Disc Brake Rotor (Front) Outside Diameter: 13.000

Emission Code: 6

Export Description: Brake Components

Fitment Notes: w/CPP 2.5 inch Drop Modular Spindle (5 Lug, 5x5BC)

Grade Type: Performance

Hose Material: Stainless Steel

Lug Count: 5 Lug

Min Wheel Dia (verify using template): 17

part type: Disc Brake Upgrade Kit

Product Line: 13 Inch Track4

Product Type: 13 Inch Track 4 Front Brake Kit

Rotor Thickness: 1.100

Rotor Type: 1-Piece

Spindle Included: No

Spindle Type: CPP Nodular Iron 2.5" Drop Spindles

Sub Category: Service Kits

Surface Type: Slotted, Drilled & Zinc Plated

System Notes: Fits CPP 2.5" nodular drop spindles: CP30106-1 (1960-1962 C10), CP30106-2 (1963-1970 C10), CP30106-3 (1971-1972 C10) or CP30106-4 (1973-1987 C10)

Template: Q082H

Wheel Lug/Bolt Pattern: 5x5.00

Wheel Stud Size: 1/2-20 x 2.25 inch
