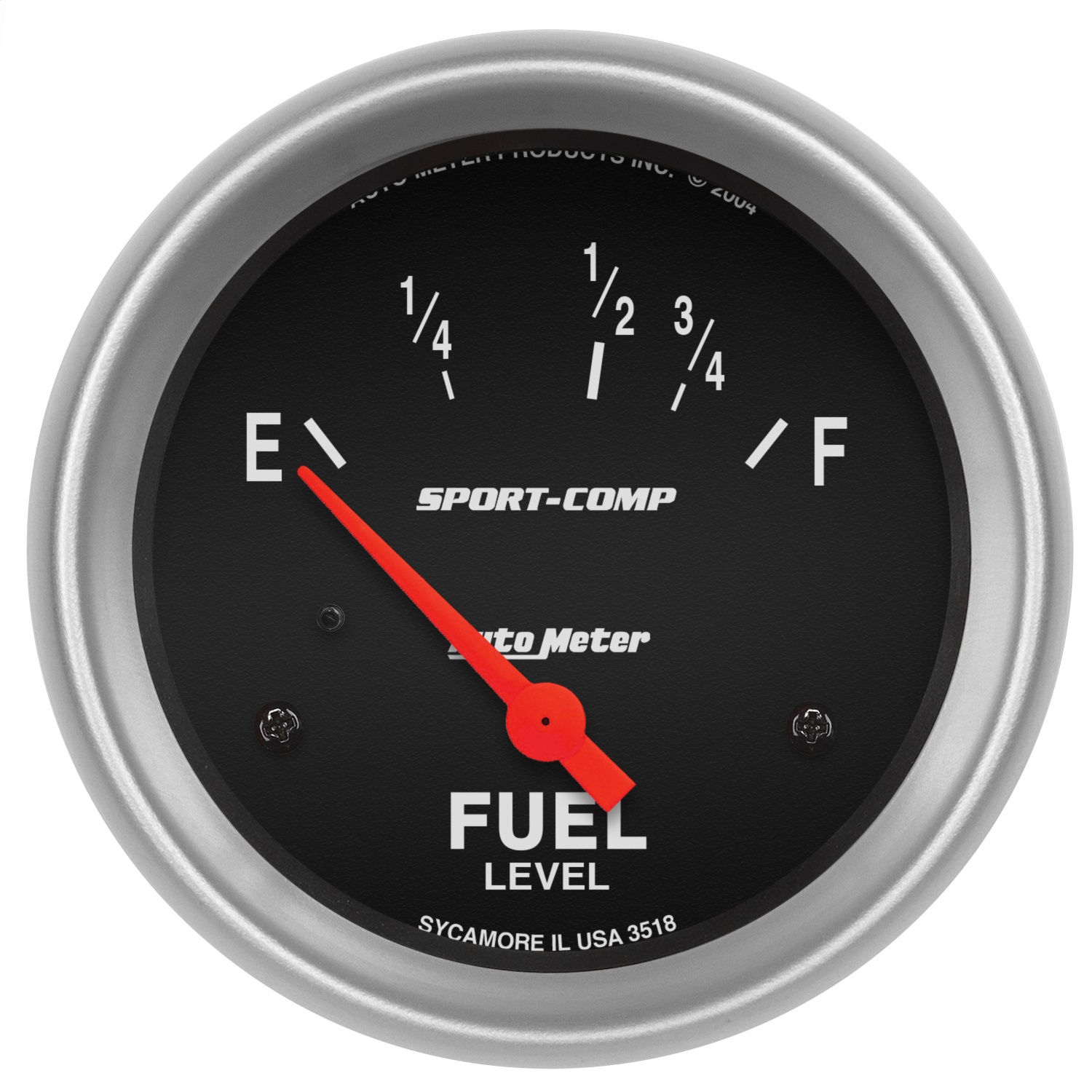

AutoMeter 3518 - Gauge Fuel Level 2-5/8in. 16 Ohm(e) to 158 Ohm(f) Elec Sport-Comp

AutoMeter 3518 - Gauge Fuel Level 2-5/8in. 16 Ohm(e) to 158 Ohm(f) Elec Sport-Comp

$107.79
$97.99
(You save $9.80 )

AutoMeter - 3518

Fuel Level Gauge - Sport-Comp - 16-158 ohm - Electric - Analog - Short Sweep - 2-5/8 in Diameter - Black Face - Each

Traditional incandescent lighting illuminates around the perimeter of the dial

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60's to mid 90's), 0-30 ohm (early GM), 73-10 ohm (pre 90's Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

  • Incandescent Lighting Illuminates Around Perimeter Of Dial
  • 12 And 16V Compatible
  • Works w/Most 1989 And Later Ford; 1987 Mustang
  • Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
  • Incl. Mounting Hardware/Instructions
  • Air-Core Electric Instruments Provide Quick And Accurate Readings

Analog Or Digital: Analog
Bezel Color: Brushed Aluminum
Bezel Style: Super Bezel
Block Adapter Included: No
Bulb and Socket Number: 3220
Bulb Technology: Incandescent
Electric Or Mechanical: Electric
Face Color: Black
Fuel Line Adapter Included: No
Gauge Adapter Included: No
Gauge Size: 2.625 in.
Gauge Size: 66.7mm
Gauge Type: Fuel Level
Hole Size: 2.625 in.
Hole Size: 66.7mm
Illuminated: Yes
Lens: Flat Clear
Lighting Color: White Incandescent
Lighting Type: Incandescent
Liquid Filled: No
Mounting Bracket Number: 3245
Movement Type: Electric Air-Core
Number Color: White
Outer Bezel Diameter: 2.875 in.
Pointer Color: Fluorescent Red
Size: 2.625 in.
Sweep: Short
Voltage: 8-18 V
