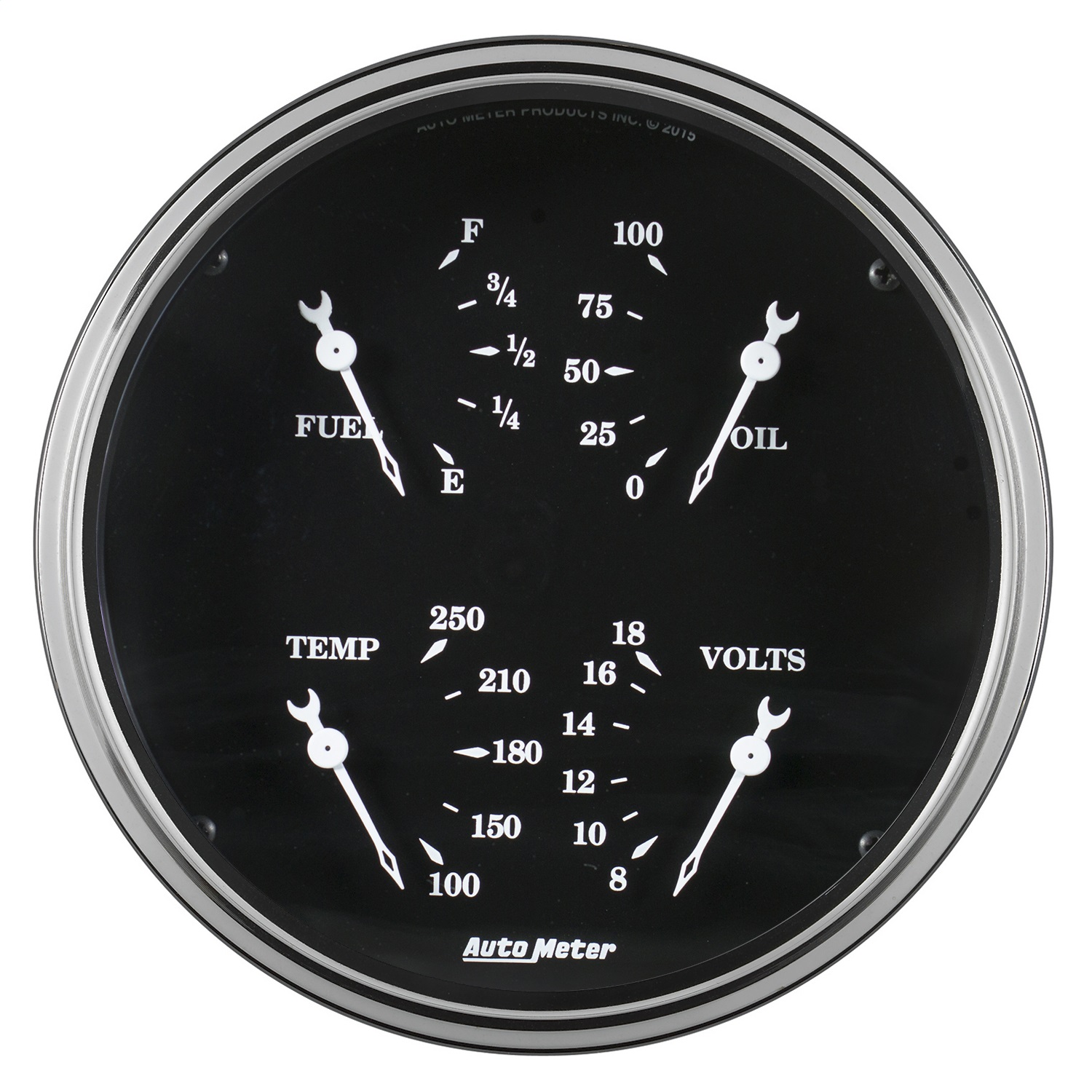

AutoMeter - 1710

GAUGE; QUAD; 5in.; 240OE-33OF; ELEC; OLD TYME BLACK

Traditional incandescent lighting illuminates around the perimeter of the dial

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter's 3262 fuel level sender).

• Incandescent Lighting Illuminates Around Perimeter Of Dial
• 4 In 1 Gauge Design
• 12 And 16V Compatible
• Provide Quick And Accurate Readings
• Incl. NPT Pressure Sender/NPT Adapter/NPT Temp Sender
• Incl. NPT Adapters/Bulb And Socket Assembly
• Incl. Red/Green Bulb Covers/Mounting Hardware
