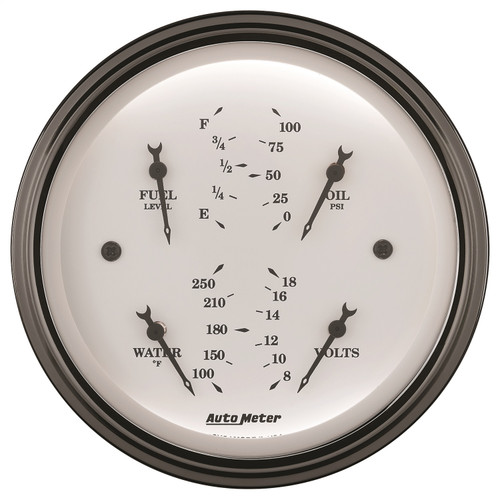

AutoMeter - 1614

GAUGE; QUAD; 3 3/8in.; 0OE-90OF; ELEC; OLD TYME WHITE

Traditional incandescent lighting illuminates around the perimeter of the dial

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8 in. NPT temperature sender and a 1/8 in. NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 0 ohms empty to 90 ohms full (compatible with Amid 60's through mid 90's GM fuel level senders).

• Incandescent Lighting Illuminates Around Perimeter Of Dial
• 12 And 16V Compatible Well-Suited w/Electrical System
• Incl. 1/8 in. NPT Pressure Sender
• Incl. 1/4 in. NPT Adapter
• Incl. 1/8 in. NPT Temp Sender
• Incl. 3/8 And 1/2 in. NPT Adapters
• Incl. Bulb/Socket Assembly/Red And Green Bulb Covers
• Incl. Mounting Hardware/Instructions
• Air-Core Electric Instruments Provide Quick And Accurate Readings
• 4 in 1 Gauge Design Saves Valuable Real Estate
