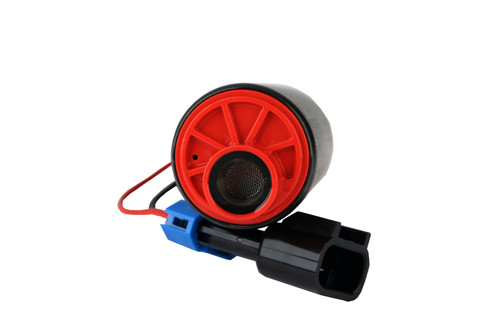

Aeromotive 11569 - 340 Series Stealth In-Tank E85 Fuel Pump - Center Inlet - Offset (GM applications)
$172.70
$157.00
(You save
$15.70
)
Aeromotive - 11569
Fuel Pump - 340 Stealth - Electric - In-Tank - 340 lph at 40 psi - Center Filter Sock Inlet - 0.362 in Outlet - Install Kit - E85 / Gas - Kit
Fuel Pump, E85, GM, 340lph (This item will supersede P/N 11169).
GM specific applications. The Aeromotive 340 Stealth Fuel Pump is a high-output, in-tank, electric fuel pump that fits most popular EFI applications. The Aeromotive 340 is a compact, lightweight pump that bolts into many existing hanger assemblies. What sets the 340 Stealth Pump apart is its superior flow throughout a wide pressure range. Compared to other popular aftermarket pumps, at 40 psi the 340 boasts more than 340 lph. That?s over 30% more flow. This pump is ideal for applications requiring more flow while retaining the factory lines and mounting provisions available in the Original Equipment (O.E.) configuration. The 340 is also perfect for use as a universal replacement for applications that require more flow to support forced air power adders such as turbo and supercharged applications. Fits most vehicles where popular aftermarket pumps are applicable. Center Inlet. E85 Compatible. OEM 39mm Body. Includes universal filter sock. Designed for in-tank use only. Can be used in Carbureted or EFI applications. Turbine pump mechanism increases durability and can be used in pulse modulated applications. P/N 11569 Includes: 340 Stealth Pump, Universal Drop Parts Kit (Filter, Wiring Pigtail, Rubber Hose, (2) Clamps, Rubber Grommet). Supersedes P/N 11169.
Filter Included: No
Fuel Delivery Type: Carburation & Fuel Injection
Fuel Sending Unit Included: No
Fuel Type: Gas/E85
Gasket Or Seal Included: No
Grade Type: Performance
Integrated Controller: No
Internal Or External: Internal
Maximum Current Draw: 15.5
Maximum Flow Rating: 340
Maximum Pressure: 65
Mounting Bracket Included: No
Mounting Hardware Included: No
Negative Ground: Yes
Outlet Outside Diameter: 0.35
Outlet Type: Barb
Pulse Width Modulation Compatible: Yes
Pump Design: turbine impeller
Regulator Included: No
Seal And Lock Ring Included: No
Series: Stealth 340
Strainer Included: Yes
Terminal Gender: 280 Metri_Pack
Terminal Quantity: 2
Terminal Type: Lead Wire
Universal Or Specific Fit: Universal
Voltage: 12
Wire Quantity: 2
Wiring Harness Included: Yes
[{"VehicleId":6386},{"VehicleId":6385},{"VehicleId":6390},{"VehicleId":6389},{"VehicleId":6387},{"VehicleId":6388},{"VehicleId":6352},{"VehicleId":6351},{"VehicleId":6376},{"VehicleId":6350},{"VehicleId":6349},{"VehicleId":4902},{"VehicleId":4960},{"VehicleId":4901},{"VehicleId":4959},{"VehicleId":4900},{"VehicleId":4958},{"VehicleId":4899},{"VehicleId":4957},{"VehicleId":4898},{"VehicleId":4928},{"VehicleId":4956},{"VehicleId":4897},{"VehicleId":4927},{"VehicleId":4955},{"VehicleId":4970},{"VehicleId":6348},{"VehicleId":6372},{"VehicleId":6339},{"VehicleId":6353},{"VehicleId":6359},{"VehicleId":6357},{"VehicleId":6356},{"VehicleId":6355},{"VehicleId":6354},{"VehicleId":6340},{"VehicleId":6358},{"VehicleId":7527},{"VehicleId":7471},{"VehicleId":7470},{"VehicleId":7472},{"VehicleId":7559},{"VehicleId":7539},{"VehicleId":7599},{"VehicleId":7558},{"VehicleId":7538},{"VehicleId":7597},{"VehicleId":7557},{"VehicleId":7536},{"VehicleId":7596},{"VehicleId":7589},{"VehicleId":7556},{"VehicleId":7535},{"VehicleId":7595},{"VehicleId":7588},{"VehicleId":7555},{"VehicleId":7534},{"VehicleId":7594},{"VehicleId":7587},{"VehicleId":7533},{"VehicleId":7593},{"VehicleId":7586},{"VehicleId":7554},{"VehicleId":7532},{"VehicleId":7592},{"VehicleId":7585},{"VehicleId":7553},{"VehicleId":7531},{"VehicleId":7591},{"VehicleId":7584},{"VehicleId":7552},{"VehicleId":7530},{"VehicleId":7590},{"VehicleId":7583},{"VehicleId":7551},{"VehicleId":7529},{"VehicleId":7582},{"VehicleId":7550},{"VehicleId":7528},{"VehicleId":210532},{"VehicleId":7598},{"VehicleId":7537},{"VehicleId":6361},{"VehicleId":6373},{"VehicleId":6374},{"VehicleId":6360},{"VehicleId":10379},{"VehicleId":10412},{"VehicleId":10427},{"VehicleId":10378},{"VehicleId":10411},{"VehicleId":10426},{"VehicleId":10377},{"VehicleId":10410},{"VehicleId":10425},{"VehicleId":10376},{"VehicleId":10409},{"VehicleId":10424},{"VehicleId":10346},{"VehicleId":10408},{"VehicleId":10345},{"VehicleId":10407},{"VehicleId":6114},{"VehicleId":6102},{"VehicleId":6101},{"VehicleId":6084},{"VehicleId":6050},{"VehicleId":6049},{"VehicleId":7460},{"VehicleId":7480},{"VehicleId":7459},{"VehicleId":7479},{"VehicleId":7488},{"VehicleId":7458},{"VehicleId":7478},{"VehicleId":7487},{"VehicleId":7457},{"VehicleId":7477},{"VehicleId":7486},{"VehicleId":7456},{"VehicleId":7476},{"VehicleId":7485},{"VehicleId":7455},{"VehicleId":7475},{"VehicleId":7484},{"VehicleId":7454},{"VehicleId":7474},{"VehicleId":7483},{"VehicleId":6377},{"VehicleId":10321},{"VehicleId":10326},{"VehicleId":10330},{"VehicleId":10322},{"VehicleId":10327},{"VehicleId":211393},{"VehicleId":235718},{"VehicleId":4976},{"VehicleId":4978},{"VehicleId":4977},{"VehicleId":4979},{"VehicleId":4940},{"VehicleId":4980},{"VehicleId":4941},{"VehicleId":4981},{"VehicleId":4939},{"VehicleId":4942},{"VehicleId":6081},{"VehicleId":6077},{"VehicleId":6078},{"VehicleId":235719},{"VehicleId":6053},{"VehicleId":6068},{"VehicleId":6079},{"VehicleId":7461},{"VehicleId":7481},{"VehicleId":7489},{"VehicleId":7462},{"VehicleId":7490},{"VehicleId":7494},{"VehicleId":7463},{"VehicleId":7482},{"VehicleId":7491},{"VehicleId":7495},{"VehicleId":7464},{"VehicleId":7492},{"VehicleId":7496},{"VehicleId":7465},{"VehicleId":7473},{"VehicleId":7493},{"VehicleId":7497},{"VehicleId":7540},{"VehicleId":7567},{"VehicleId":7600},{"VehicleId":7577},{"VehicleId":7541},{"VehicleId":7568},{"VehicleId":7578},{"VehicleId":7601},{"VehicleId":9281},{"VehicleId":9282},{"VehicleId":10405},{"VehicleId":10406},{"VehicleId":6030},{"VehicleId":6047},{"VehicleId":6066},{"VehicleId":6048},{"VehicleId":6067},{"VehicleId":6056},{"VehicleId":6089},{"VehicleId":6090},{"VehicleId":6091},{"VehicleId":6094},{"VehicleId":10343},{"VehicleId":10393},{"VehicleId":10344},{"VehicleId":10394},{"VehicleId":10347},{"VehicleId":10348},{"VehicleId":10349},{"VehicleId":10350},{"BaseVehicleId":2661,"EngineBaseId":363},{"BaseVehicleId":2661,"EngineBaseId":378},{"BaseVehicleId":2661,"EngineBaseId":63},{"BaseVehicleId":2661,"EngineBaseId":1713},{"BaseVehicleId":2662,"EngineBaseId":363},{"BaseVehicleId":2662,"EngineBaseId":378},{"BaseVehicleId":2662,"EngineBaseId":63},{"BaseVehicleId":2663,"EngineBaseId":363},{"BaseVehicleId":2663,"EngineBaseId":378},{"BaseVehicleId":2663,"EngineBaseId":63},{"BaseVehicleId":2664,"EngineBaseId":363},{"BaseVehicleId":2664,"EngineBaseId":63},{"BaseVehicleId":2665,"EngineBaseId":363},{"BaseVehicleId":2665,"EngineBaseId":63},{"BaseVehicleId":2665,"EngineBaseId":377},{"BaseVehicleId":2666,"EngineBaseId":363},{"BaseVehicleId":2666,"EngineBaseId":63},{"BaseVehicleId":2666,"EngineBaseId":377},{"BaseVehicleId":3116,"EngineBaseId":63},{"BaseVehicleId":3117,"EngineBaseId":63},{"BaseVehicleId":3119,"EngineBaseId":62},{"BaseVehicleId":3119,"EngineBaseId":63},{"BaseVehicleId":3101,"EngineBaseId":62},{"BaseVehicleId":3101,"EngineBaseId":63},{"BaseVehicleId":3118,"EngineBaseId":62},{"BaseVehicleId":3118,"EngineBaseId":63},{"BaseVehicleId":3120,"EngineBaseId":62},{"BaseVehicleId":3120,"EngineBaseId":63},{"BaseVehicleId":3121,"EngineBaseId":62},{"BaseVehicleId":3121,"EngineBaseId":63},{"BaseVehicleId":3122,"EngineBaseId":62},{"BaseVehicleId":3122,"EngineBaseId":63},{"BaseVehicleId":3216,"EngineBaseId":361},{"BaseVehicleId":3217,"EngineBaseId":361},{"BaseVehicleId":3218,"EngineBaseId":62},{"BaseVehicleId":3219,"EngineBaseId":62},{"BaseVehicleId":3220,"EngineBaseId":62},{"BaseVehicleId":3208,"EngineBaseId":62},{"BaseVehicleId":3221,"EngineBaseId":62},{"BaseVehicleId":3222,"EngineBaseId":62},{"BaseVehicleId":3222,"EngineBaseId":1349},{"BaseVehicleId":3223,"EngineBaseId":62},{"BaseVehicleId":3223,"EngineBaseId":1349},{"BaseVehicleId":3224,"EngineBaseId":62},{"BaseVehicleId":3224,"EngineBaseId":1349},{"BaseVehicleId":3209,"EngineBaseId":62},{"BaseVehicleId":3209,"EngineBaseId":1349},{"BaseVehicleId":3225,"EngineBaseId":62},{"BaseVehicleId":3225,"EngineBaseId":1349},{"BaseVehicleId":3226,"EngineBaseId":62},{"BaseVehicleId":3226,"EngineBaseId":1349},{"BaseVehicleId":3227,"EngineBaseId":62},{"BaseVehicleId":3227,"EngineBaseId":5365},{"BaseVehicleId":3644,"EngineBaseId":884},{"BaseVehicleId":3644,"EngineBaseId":381},{"BaseVehicleId":3644,"EngineBaseId":450},{"BaseVehicleId":3645,"EngineBaseId":884},{"BaseVehicleId":3645,"EngineBaseId":381},{"BaseVehicleId":3645,"EngineBaseId":450},{"BaseVehicleId":3646,"EngineBaseId":884},{"BaseVehicleId":3646,"EngineBaseId":368},{"BaseVehicleId":3647,"EngineBaseId":884},{"BaseVehicleId":3647,"EngineBaseId":368},{"BaseVehicleId":3648,"EngineBaseId":884},{"BaseVehicleId":3648,"EngineBaseId":368},{"BaseVehicleId":3649,"EngineBaseId":397},{"BaseVehicleId":3649,"EngineBaseId":884},{"BaseVehicleId":3649,"EngineBaseId":368},{"BaseVehicleId":3650,"EngineBaseId":397},{"BaseVehicleId":3650,"EngineBaseId":884},{"BaseVehicleId":3651,"EngineBaseId":397},{"BaseVehicleId":3652,"EngineBaseId":397},{"BaseVehicleId":3652,"EngineBaseId":757},{"BaseVehicleId":3653,"EngineBaseId":397},{"BaseVehicleId":3653,"EngineBaseId":757},{"BaseVehicleId":3654,"EngineBaseId":397},{"BaseVehicleId":3654,"EngineBaseId":757},{"BaseVehicleId":3655,"EngineBaseId":397},{"BaseVehicleId":3655,"EngineBaseId":757},{"BaseVehicleId":3668,"EngineBaseId":884},{"BaseVehicleId":3668,"EngineBaseId":450},{"BaseVehicleId":3669,"EngineBaseId":884},{"BaseVehicleId":3669,"EngineBaseId":381},{"BaseVehicleId":3669,"EngineBaseId":450},{"BaseVehicleId":3670,"EngineBaseId":884},{"BaseVehicleId":3670,"EngineBaseId":381},{"BaseVehicleId":3670,"EngineBaseId":450},{"BaseVehicleId":3671,"EngineBaseId":884},{"BaseVehicleId":3671,"EngineBaseId":368},{"BaseVehicleId":3671,"EngineBaseId":450},{"BaseVehicleId":3672,"EngineBaseId":884},{"BaseVehicleId":3672,"EngineBaseId":368},{"BaseVehicleId":3673,"EngineBaseId":884},{"BaseVehicleId":3673,"EngineBaseId":368},{"BaseVehicleId":3674,"EngineBaseId":397},{"BaseVehicleId":3674,"EngineBaseId":884},{"BaseVehicleId":3674,"EngineBaseId":368},{"BaseVehicleId":3675,"EngineBaseId":397},{"BaseVehicleId":3675,"EngineBaseId":884},{"BaseVehicleId":3675,"EngineBaseId":368},{"BaseVehicleId":3676,"EngineBaseId":397},{"BaseVehicleId":3676,"EngineBaseId":884},{"BaseVehicleId":3676,"EngineBaseId":368},{"BaseVehicleId":3667,"EngineBaseId":397},{"BaseVehicleId":3667,"EngineBaseId":757},{"BaseVehicleId":3667,"EngineBaseId":884},{"BaseVehicleId":3667,"EngineBaseId":368},{"BaseVehicleId":3677,"EngineBaseId":397},{"BaseVehicleId":3677,"EngineBaseId":757},{"BaseVehicleId":3677,"EngineBaseId":884},{"BaseVehicleId":3677,"EngineBaseId":368},{"BaseVehicleId":3678,"EngineBaseId":397},{"BaseVehicleId":3678,"EngineBaseId":757},{"BaseVehicleId":3678,"EngineBaseId":884},{"BaseVehicleId":3678,"EngineBaseId":368},{"BaseVehicleId":3679,"EngineBaseId":397},{"BaseVehicleId":3679,"EngineBaseId":372},{"BaseVehicleId":3680,"EngineBaseId":397},{"BaseVehicleId":3680,"EngineBaseId":372},{"BaseVehicleId":4216,"EngineBaseId":397},{"BaseVehicleId":4217,"EngineBaseId":397},{"BaseVehicleId":4648,"EngineBaseId":884},{"BaseVehicleId":4650,"EngineBaseId":884},{"BaseVehicleId":4662,"EngineBaseId":63},{"BaseVehicleId":4663,"EngineBaseId":63},{"BaseVehicleId":4664,"EngineBaseId":62},{"BaseVehicleId":4664,"EngineBaseId":63},{"BaseVehicleId":4665,"EngineBaseId":62},{"BaseVehicleId":4665,"EngineBaseId":63},{"BaseVehicleId":4666,"EngineBaseId":62},{"BaseVehicleId":4666,"EngineBaseId":63},{"BaseVehicleId":4667,"EngineBaseId":62},{"BaseVehicleId":4667,"EngineBaseId":63},{"BaseVehicleId":4668,"EngineBaseId":62},{"BaseVehicleId":4668,"EngineBaseId":63},{"BaseVehicleId":4669,"EngineBaseId":62},{"BaseVehicleId":4669,"EngineBaseId":63}]
