AEM - 30-0309

Pressure Gauge - X-Series - 0-15 psi - Electric - Digital - 2-1/16 in Diameter - Full Sweep - Black Face - Each

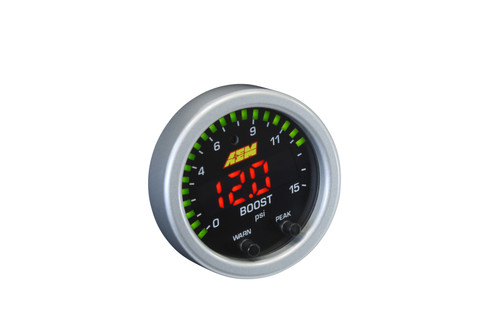

X-Series Pressure Gauge 0-15psi, Black Bezel and Reversible Black Boost or Fuel Pressure Faceplate

X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.

• 2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
• Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
• Center LED is 87% larger than original AEM gauges
• 24 green outer LEDs for quick reference to engine parameter
• Peak/Recall via gauge face buttons
• User selectable threshold warnings
• Optional silver bezel with white faceplate accessory kit available (sold separately)
• AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
• 0-5v analog outputs for transmitting data to EMS or Data Logger
• Auto dimming sensor delivers ideal display brightness
• Positive locking connectors provide secure connection
