Action Clutch ACR-0961 - 83-88 Mazda RX-7 1.3L (13B) Non-Turbo Stage 1 Clutch Kit (1OS)
Action Clutch ACR-0961 - 83-88 Mazda RX-7 1.3L (13B) Non-Turbo Stage 1 Clutch Kit (1OS)

Action Clutch ACR-0961 - 83-88 Mazda RX-7 1.3L (13B) Non-Turbo Stage 1 Clutch Kit (1OS)

Write a Review
$347.88
SKU: HNYD-ACR-0961
UPC: 887753699329
Stock: 0
Vendor: Turn14 - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 8.000
CostOfItem: 306.95
ItemPopularity: 0
MapPrice: 347.88
RetailPrice: N/A
IsReturnable: True
WarehouseStock: 0
ShipperHq: {"shipping-groups":["Turn14","FreeShipping","Flatrate_Turn14"],"shipping-origins":[],"shipping-dimensional-rules":[]}
EbayAllowed: False
EbayPrice: 358.99
EbayPriority: 0

Out of stock

  • screenshot-2024-06-06-013938.png
Action Clutch ACR-0961 - 83-88 Mazda RX-7 1.3L (13B) Non-Turbo Stage 1 Clutch Kit (1OS)

Action Clutch ACR-0961 - 83-88 Mazda RX-7 1.3L (13B) Non-Turbo Stage 1 Clutch Kit (1OS)

$347.88
Description

Action Clutch - ACR-0961

Clutch Kit for Mazda RX-7 1983-1988 1.1L/1.3L Non-Turbo

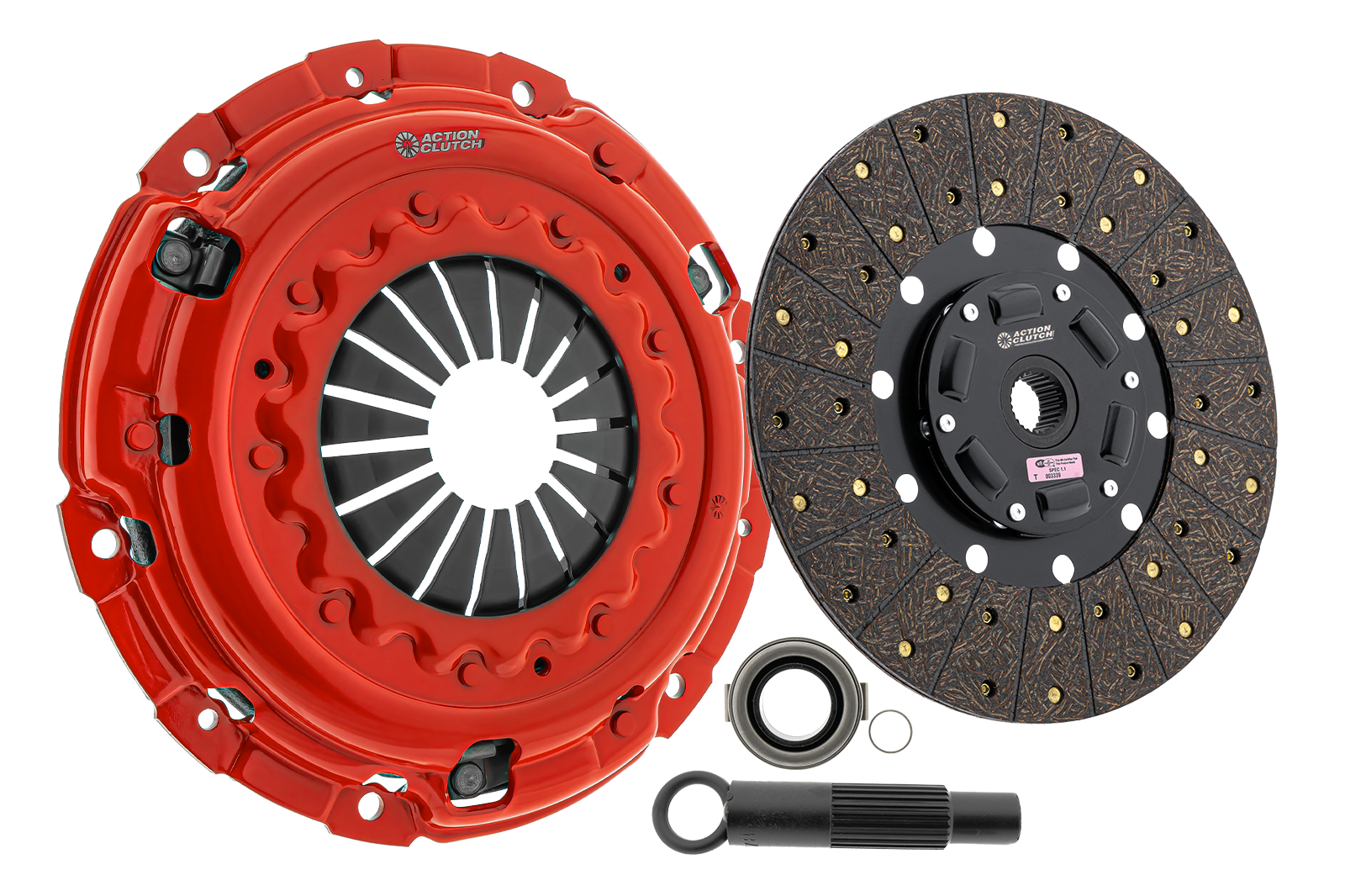

Stage 1 Clutch Kit (1OS) for Mazda RX-7 1983-1988 1.3L (13B) Non-Turbo

Action Clutch Stage 1 (1OS) Kits have been designed for vehicles ranging from stock to basic bolt-on cars. It utilizes a reinforced Steel Backed Copper Kevlar Organic friction material, coupled with a single diaphragm heavy-duty pressure plate to give you smooth and reliable engagement without sacrificing the OEM-like pedal feel. At Action Clutch, safety is our top priority. We understand how catastrophic engine or transmission damage can be caused by springs popping out which is why we use our patented, fully enclosed spring retainers to keep your investment protected at all times. Every kit is quality checked by one of our experienced engineers (with over 60 years of collective experience) and signed off as safe before being released as a finished product. This gives you peace of mind knowing that your Action Clutch will perform consistently every time. 70% INCREASED HOLDING CAPACITY OVER FACTORY KIT RECOMMENDED FOR HEAVY-DUTY STREET USE AND MILD TRACK-USE

Alignment Tool Included: Yes
Release Style: Conventional Release Bearing
Clutch Disk Spline Diameter: 15/16
Clutch Disk Diameter: 225
Alignment Tool Model: AT05
Pilot Bearing Model: 152016
Release Bearing Model: 614067
Pressure Plate Model: MZC529HD R
Clutch Disk Model: ACR-SB-225 15/16X22T-NOSE UP
Break-in Care: 500 street miles. Keep RPM's under 4500, no more than half-throttle, no boost (if applicable). Proper break-in is required in order to retain product warranty, ensure longevity and holding capacity.
Disclaimer: Increase in holding capacity is rated in Crank Torque, not Wheel Torque
Package Contents: Sprung Organic Disc
Counterweight Assist: No
Weight: 17
Clutch Kit Type: Stage 1 Clutch Kit (1OS)
Spring Cover Included: Yes
Release Bearing Included: Yes
Pilot Bearing Included: Yes
Mounting Hardware Included: No
Flywheel Included: No
Friction Material: Organic
Clutch Disk Spline Count: 22
