ACT TM1-XTR4 - 1991 Toyota MR2 XT/Race Rigid 4 Pad Clutch Kit

Write a Review
$744.00
$532.99
(You save $211.01 )
SKU: ACT-TM1-XTR4
UPC: 842385016951
Stock: 1
Vendor: Turn14 - CSR
SpecialOrder: True
CarbRejected: False
CouponIsOn: False
StockEta: N/A
ProfitMargin: 8.100
CostOfItem: 476.59
ItemPopularity: 0
MapPrice: 520.80
RetailPrice: 744.00
WarehouseStock: 0
EbayAllowed: False
ShippingGroups: ["Calculated"]
EbayPrice: 580
ShipperHq: {"shipping-groups":["Turn14","FreeShipping","Flatrate_Turn14"],"shipping-origins":[],"shipping-dimensional-rules":[]}
IsReturnable: True
EbayPriority: 0
Adding to cart… The item has been added
  • screenshot-2024-06-06-013938.png
ACT TM1-XTR4 - 1991 Toyota MR2 XT/Race Rigid 4 Pad Clutch Kit

ACT TM1-XTR4 - 1991 Toyota MR2 XT/Race Rigid 4 Pad Clutch Kit

$744.00
$532.99
(You save $211.01 )

ACT - TM1-XTR4

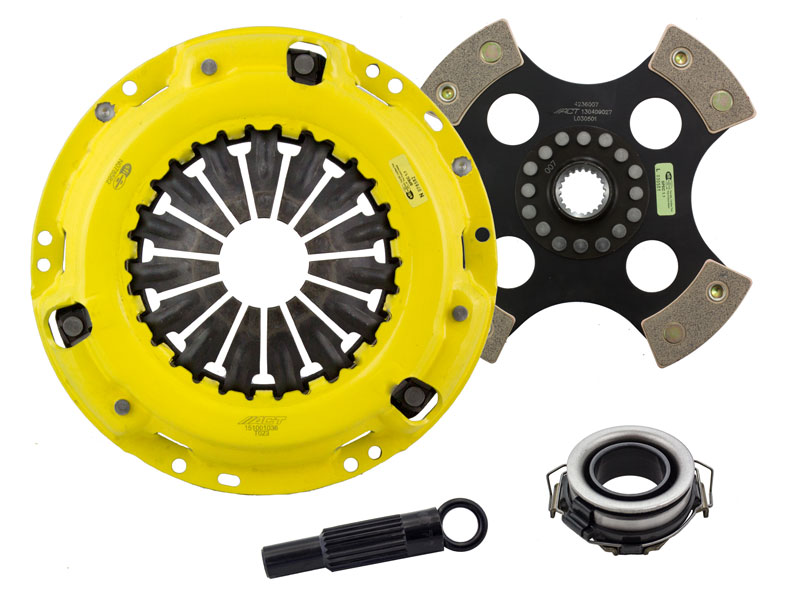

ACT Extreme Race Rigid 4 Pad Clutch Kit

XT/Race Rigid 4 Pad

TM1-XTR4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad rigid race discs are made with high quality, ceramic friction materials. The chrome-moly hub is heat-treated for strength and durability. The lightweight, rigid design allows for quicker shifts and smooth, trouble-free service. With the 4-pad rigid race disc, engagement is harsher, but shifting is faster. The 4-pad rigid race disc is well-suited for the smaller disc sizes in smaller engines.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!

Product Weight (lbs.): 12.9
Torque Capacity (ft/lbs.): 645
Torque Capacity Over OE: 118%
Flywheel Included: No
Pilot Bushing Included: No
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 9.3
Clutch Disc Diameter: 236
Disc Material: Ceramic
Input Spline Quantity: 21
Input Shaft Diameter: 1.125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Solid
Pressure Plate Bolts Included: No
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: No
Pilot Bearing Included: No
Clutch Master Cylinder Included: No

[{"VehicleId":20247},{"VehicleId":20245},{"VehicleId":20243},{"VehicleId":20241},{"VehicleId":20239}]
