ACT BM13-XTG4 - XT/Race Sprung 4 Pad Kit

ACT BM13-XTG4 - XT/Race Sprung 4 Pad Kit

$1,897.00
$1,480.00
(You save $417.00 )

ACT - BM13-XTG4

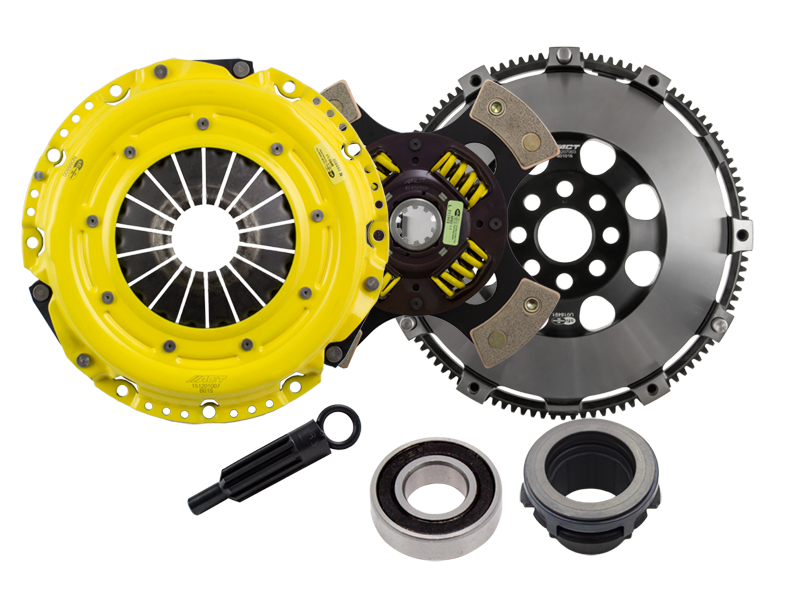

ACT Extreme Race Sprung 4 Pad Clutch Kit

XT/Race Sprung 4 Pad

BM13-XTG4 kit features an Xtreme pressure plate for the most demanding driver. ACT Xtreme pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT's 4-pad spring-centered race disc features a spring-center construction to properly damp torsional vibrations for quieter operation and resist failure even under harsh conditions. ACT spring retainers utilize wraparound spring windows and thicker retainer stampings to provide spring support, reduce stress concentrations, and increase strength and reliability. With the 4-pad spring-centered race disc, engagement is harsher, but shifting is faster. ACT's 4-pad spring-centered race disc is well-suited for smaller disc sizes in smaller engines.

  • "Excellence in Performance", backed by the best one-year warranty in the industry!

Flywheel Type: Prolite
Part Fitment Requirement: Conversion kit. Includes ACT Prolite flywheel. Must use ACT flywheel (included in kit). Flywheel bolts included (M12-1.5 x 30mm). Pressure plate bolts included (M8-1.25 x 20mm).
Product Weight (lbs.): 24.8
Torque Capacity (ft/lbs.): 702
Torque Capacity Over OE: 129%
Flywheel Included: Yes
Pilot Bushing Included: No
Pressure Plate Type: Xtreme
Release Bearing Included: Yes
Clutch Disc Diameter: 9.4
Clutch Disc Diameter: 240
Disc Material: Ceramic
Input Spline Quantity: 10
Input Shaft Diameter: 1.125
Alignment Tool Included: Yes
Disc Type Sprung Solid: Sprung
Pressure Plate Bolts Included: Yes
Grease Included: Yes
Grade Type: Performance
Clutch Slave Cylinder Included: No
Flywheel Bolts Included: Yes
Pilot Bearing Included: Yes
Clutch Master Cylinder Included: No
